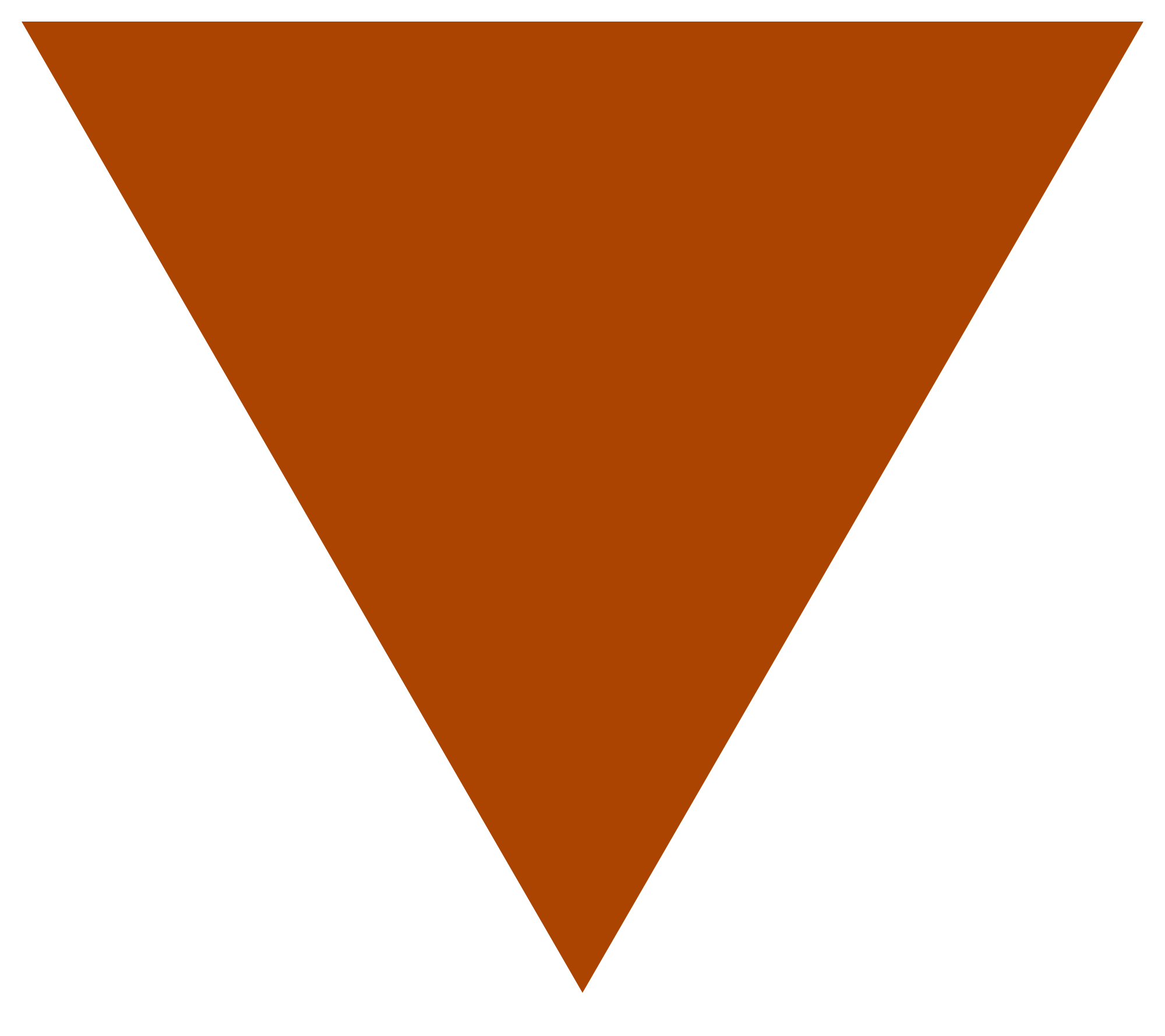

Triangle

A triangle is the 2 simplex. The study of triangles is called trigonometry (plus the study of angles). Its Bowers acronym is "trig". It is also known as a pyrogon under the elemental naming scheme.

Types of Triangle[]

By Sides[]

Equilateral[]

When all of the angles and edges of a triangle are equal a triangle is equilateral. Each angle must have a measure of exactly 60 degrees.

Isosceles[]

When a triangle has two equal sides, it is isosceles. It must also have two equal angles.

Scalene[]

A triangle with three unique side lengths is known as a scalene triangle.

By Angles[]

Acute[]

A triangle with all three angles smaller than 90 degrees is called an acute triangle. All equilateral triangles are also acute triangles.

Right-Angled[]

A triangle with one right angle is a right-angled triangle. Their side lengths follow the equation

$a^2+b^2=c^2$ , where c is the edge length of the side opposite the right angle.

Obtuse[]

A triangle where at least one angle is greater than 90 degrees is called an obtuse triangle.

Special Cases[]

A triangle with more than one right angle is usually degenerate but can appear on the surface of a sphere. The same applies to a triangle with angles that sum to greater than 180 degrees, and to triangles that have an angle equal to 180 degrees.

Symbols[]

The triangle has three Dynkin type symbols:

x3o (regular)
ox&#x (isosceles)
ooo&#x (scalene)

Structure and Sections[]

Sections[]

As seen from a vertex, a triangle starts as a point that expands into a line segment.

Hypervolumes[]

vertex count = $3$

edge length = $3l$

surface area = $\frac{\sqrt{3}}{4} l^2$

Formulas for a general triangle[]

If we let a, b, c be the sides of the triangle, and h be the higher perpendicular to side a, then we can obtain these formulae:

Edge length = $a+b+c$

Surface area = $\frac{1}{2}ah$

Subfacets[]

1 null polytope (-1D)
3 points (0D)
3 line segments (1D)
1 triangle (2D)

Radii[]

Vertex radius: $\frac{\sqrt{3}{3}}l$

Edge radius: $\frac{\sqrt{3}{6}}l$

Angles[]

Vertex angle: 60º

Vertex coordinates[]

The simplest way to obtain vertex coordinates for an equilateral triangle is as a face of a 3D octahedron, thus yielding the coordinates as

(1,0,0)
(0,1,0)
(0,0,1)

thus giving a triangle of size

$\sqrt{2}$ .

To obtain a triangle in the 2D plane with side 2, the coordinates are

(±1,-√3/3)
(0,2√3/3)

Notations[]

Tapertopic notation: $1^1$

Related shapes[]

Dual: self dual
Vertex figure: Line segment, length 1
