Pentagon

Pentagon
Dimensionality	2
Schläfli Symbol	'"`UNIQ--postMath-00000001-QINU`"'
Symmetry	Pentagonal dihedral symmetry (D5)
Coxeter–Dynkin diagram
Bowers acronym	peg
Subfacets
Vertices	5 points
Edges	5 line segments
Faces	1 pentagon
Hypervolumes
Vertex Count	'"`UNIQ--postMath-00000002-QINU`"'
Edge Length	'"`UNIQ--postMath-00000003-QINU`"'
Surface Area	'"`UNIQ--postMath-00000004-QINU`"'

A pentagon is a 2-dimensional polygon with five edges. The Bowers acronym for a pentagon is peg. It is called a cosmogon, hydrogon, or a rhodogon under the elemental naming scheme.

Structure and Sections

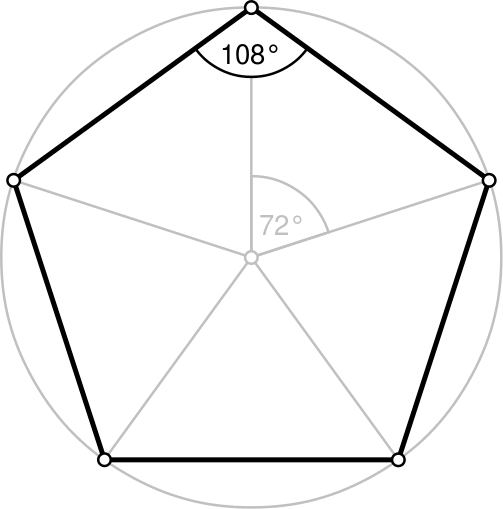

The regular pentagon has equal edges and each angle being 108 degrees.

Hypervolumes

• vertex count =$5$
• edge length =$5l$
• surface area =${\frac {\sqrt {5(5+2{\sqrt {5}})}}{4}}{l}^{2}$

Subfacets

• 1 null polytope (-1D)
• 5 points (0D)
• 5 line segments (1D)
• 1 pentagon (2D)

Radii

• Vertex radius:${\sqrt {\frac {5+{\sqrt {5}}}{10}}}l$
• Edge radius:${\frac {{\sqrt {\frac {5+2{\sqrt {5}}}{5}}}{2}}{l}}$

Angles

• Dihedral angle: 108º

Vertex coordinates

The coordinates of a pentagon in the plane are:

• (0,√((10+2√5)/5)
• (±(1+√5)/2,√((5-√5)/10)
• (±1,-√((5+2√5)/5)

Related shapes

• Dual: Self-dual
• Vertex figure: Line segment, length φ =$\frac{1+\sqrt{5}}{2}$
• Conjugate: Pentagram
